NC7SZ00M5 – High-Speed Single 2-Input NAND Gate

Description

Technical Specifications:

• Logic Type: NAND Gate
• Number of Inputs: 2
• Supply Voltage (Vcc): 1.65V to 5.5V
• Propagation Delay: ~3.7ns at 3.3V
• Operating Temperature Range: -40°C to +85°C
• Output Type: CMOS, Standard Logic

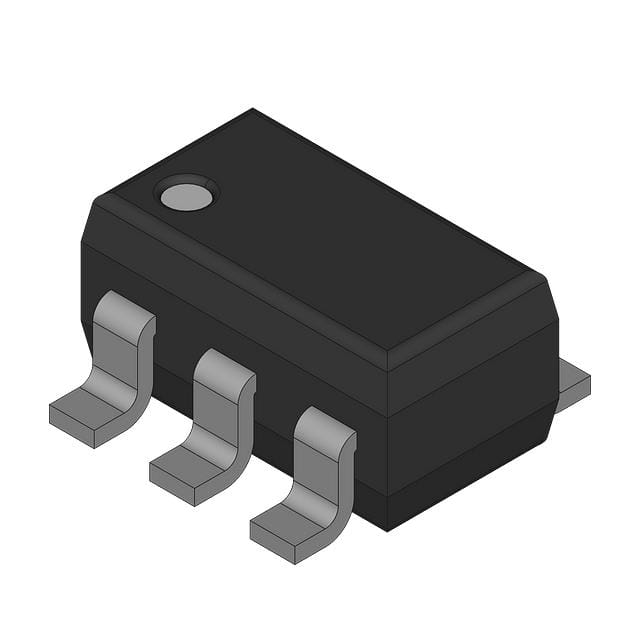

• Package Type: SOT-23-5 (SC-74A)
• Applications: Embedded systems, industrial automation, consumer electronics, logic circuit design, and portable devices.

Product Features:

• Single 2-Input NAND Gate: Essential for digital logic operations.
• High-Speed Performance: Low propagation delay enhances circuit efficiency.
• Low Power Consumption: Optimized for energy-efficient applications.
• Wide Voltage Range: Operates from 1.65V to 5.5V, making it suitable for various logic levels.
• Schmitt Trigger Inputs: Provides better noise immunity and stable operation.
• Compact Package: Available in a SOT-23-5 (SC-74A) package for space-constrained designs.
