ISL8485EIBZ-T – Half-Duplex RS-485/RS-422 Transceiver

Description

Technical specifications:

• Transceiver type: RS-485/RS-422 half-duplex
• Supply voltage: 3.0V to 5.5V
• Data rate: 250kbps
• Driver/Receiver: 1/1
• ESD protection: ±15kV HBM
• Operating temperature: -40°C to +85°C
• Shutdown current: 1µA max

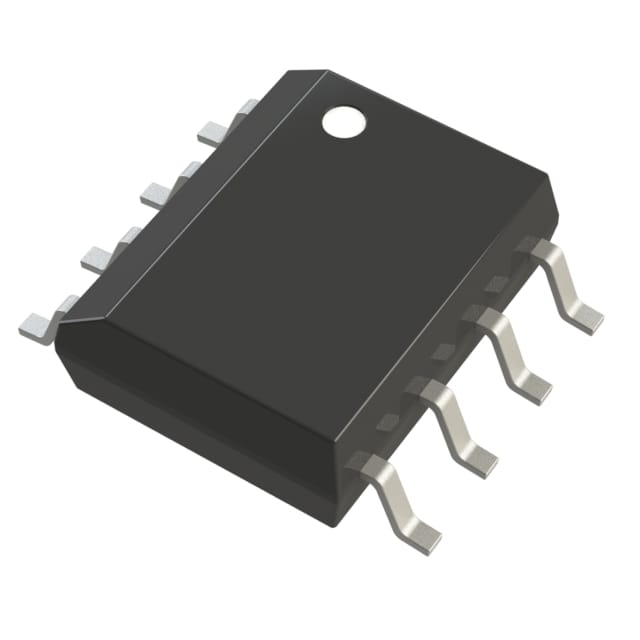

• Package: 8-lead SOIC
• Applications: Industrial networks, HVAC systems, building automation, RS-485 communication

Product features:

• Half-duplex communication: Ideal for two-wire RS-485 and RS-422 networks
• High ESD protection: ±15kV Human Body Model (HBM) on RS-485/RS-422 bus pins
• Wide supply range: Operates from 3V to 5.5V
• Failsafe features: Default-high receiver output on open, shorted, or terminated input
• Low power consumption: 1µA shutdown current for power-sensitive applications
• High data rates: Up to 250kbps for long-distance communication
