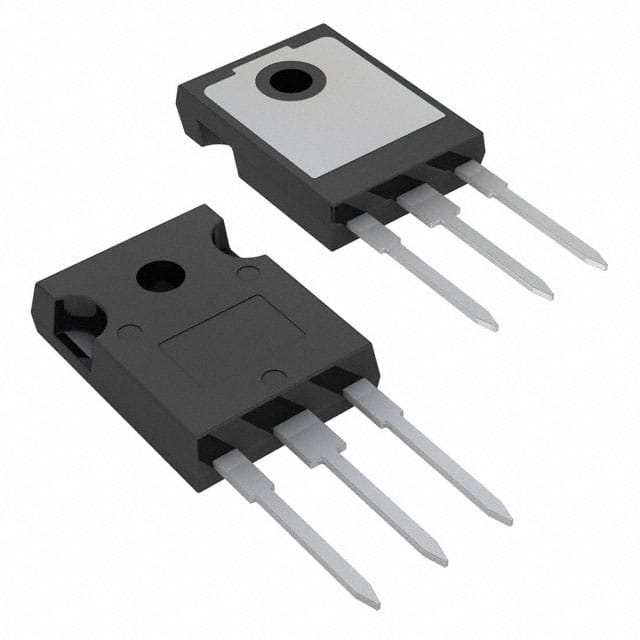

IRFP4242PBF – 250V N-Channel HEXFET Power MOSFET

Description

Technical specifications:

• Drain-to-source voltage (V_DSS): 250V
• Continuous drain current (I_D): 62A @ 25°C
• R_DS(on): 0.033Ω max
• Total gate charge (Q_g): 170nC typical
• Gate threshold voltage (V_GS(th)): 2.0V–4.0V
• Package: TO-247AC
• Operating temperature: -55°C to +175°C
• Applications: Motor drives, SMPS, UPS, DC-DC converters, industrial power systems

Product features:

• High voltage rating: 250V drain-to-source voltage
• High current capability: Continuous drain current up to 62A
• Low R_DS(on): Just 0.033Ω max for minimal conduction losses
• Fast switching: Optimized for high-efficiency switching operations
• TO-247 package: Thermally efficient for power dissipation
• Rugged design: Avalanche rated and high dv/dt capability
