IDT7285L15PA – High-Speed CMOS Asynchronous FIFO

Description

Technical Specifications:

• Type: Asynchronous FIFO
• Memory Size: 144 Kbits
• Organization: 8K x 9 x 2
• Access Time: 15 ns
• Maximum Frequency: 40 MHz
• Operating Voltage: 3.3V
• Operating Temperature Range: 0°C to +70°C

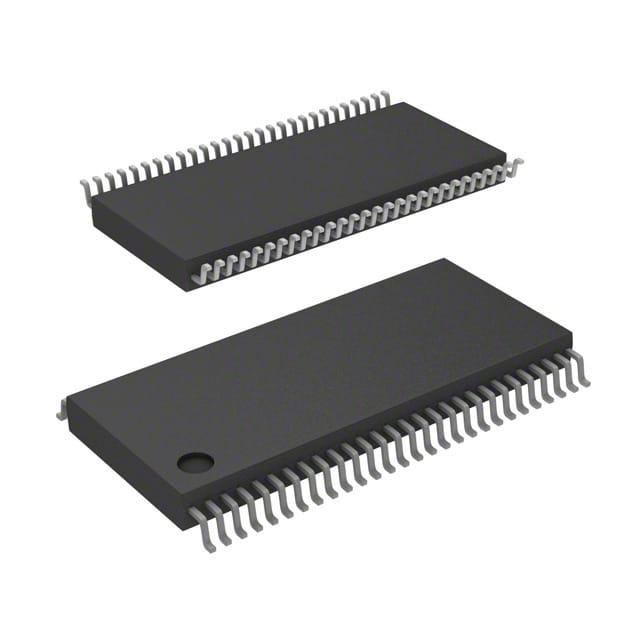

• Package Type: 56-TSSOP

Product Features:

• High-Speed Operation: Features a fast 15ns read access time.
• Dual Asynchronous FIFO: Contains two independent FIFO memories of 8K x 9 bits each.
• Asynchronous Read and Write: Allows independent read and write operations at different clock frequencies.
• Uni-Directional Data Flow: Designed for unidirectional data transfer.
• Empty and Full Flags: Provides status flags to prevent data underflow and overflow.
• Low Power Consumption: CMOS technology ensures low power operation.
• Space-Saving Package: Housed in a 56-TSSOP package for efficient board space utilization.
