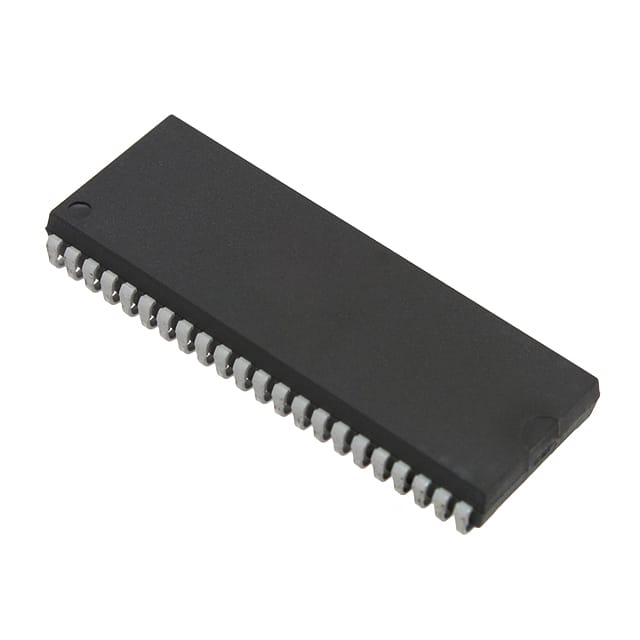

IDT71016S15YG – High-Speed 1Mbit (64K x 16) CMOS Static RAM

Description

Technical Specifications:

• Type: Static RAM (SRAM)
• Memory Size: 1 Mbit (1,048,576 bits)
• Organization: 64K x 16
• Access Time: 15 ns
• Operating Voltage Range: 4.5V to 5.5V
• Operating Temperature Range: 0°C to +70°C
• Package Type: 44-pin SOJ

Product Features:

• High-Speed Operation: Offers a fast access time of 15 nanoseconds for quick data retrieval.
• Memory Organization: 1Mbit capacity configured as 64K words of 16 bits.
• Wide Operating Voltage: Operates within a standard 4.5V to 5.5V range.
• Low Power Consumption: Features chip deselect for reduced power usage when not actively accessed.
• TTL Compatibility: Inputs and outputs are compatible with TTL logic levels.
• Byte Enable Control: Includes upper and lower byte enable pins for flexible data access.
• Bidirectional Data I/O: Supports bidirectional data input and output.
• Compact Package: Housed in a 44-pin SOJ (Small Outline J-Lead) package for surface mount assembly.
