IDT5V41066PGGI – 4 Output PCIe Gen1/2 Synthesizer

Description

Technical Specifications:

• Type: Clock Synthesizer
• PLL: Integrated
• Number of Outputs: 4 (differential HCSL)
• PCIe Generation: Gen1, Gen2
• Spread Spectrum: Capable
• Output Frequency: Selectable (typically 100/200 MHz)
• Operating Voltage: 3.3V

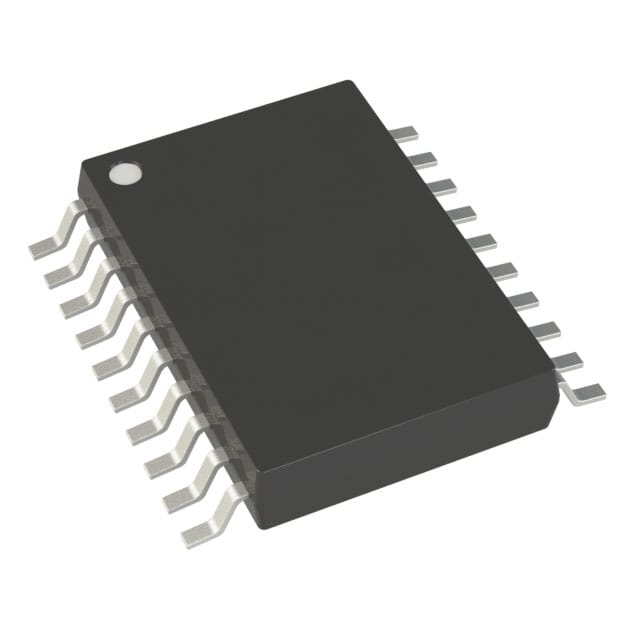

• Package Type: 20-TSSOP

Product Features:

• Four Output Synthesizer: Provides four differential HCSL (High-Speed Current Steering Logic) outputs.
• PCIe Gen1/2 Compliant: Meets the clocking requirements for PCI Express Generation 1 and 2.
• Spread-Spectrum Capable: Reduces EMI emissions for improved system performance.
• Selectable Spread and Frequency: Allows configuration of spread amount and output frequency via select pins.
• Power Down Pin: Enables power saving by powering down PLLs and tri-stating outputs.
• Output Enable Control: Offers a control pin for output enabling/disabling.
• Low Jitter: Features cycle-to-cycle jitter less than 100 ps and output-to-output skew less than 50 ps.
• PCIe Gen2 Phase Jitter: Exhibits phase jitter less than 3.0 ps RMS.
• Small Footprint: Housed in a compact 20-pin TSSOP (Thin Shrink Small Outline Package).
• LVDS Compatible Termination: Outputs can be terminated to LVDS levels.
