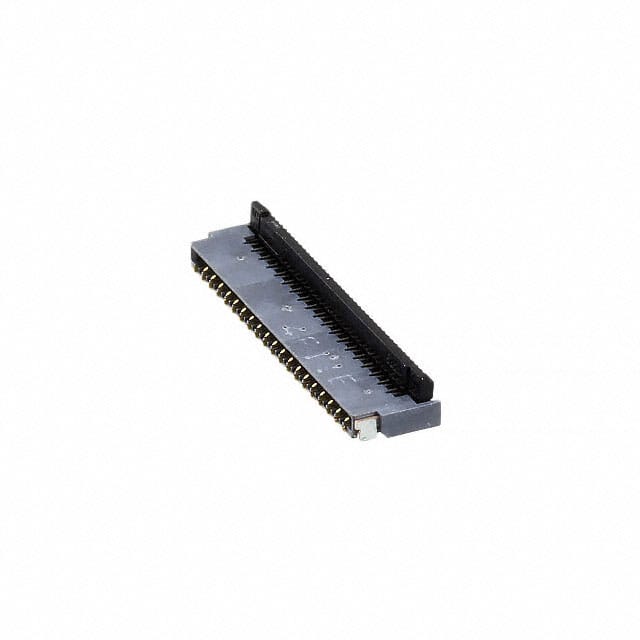

FH35C-39S-0.3SHW(50) – 39-Position 0.3mm Pitch FPC Connector

Description

Technical Specifications:

• Current Rating: 200 mA
• Voltage Rating: 30V AC/DC
• Insulation Resistance: 50 MΩ minimum
• Dielectric Withstanding Voltage: 150V AC for 1 minute
• Operating Temperature Range: -55°C to +85°C
• Mating Cycles: 10 cycles

Product Features:

• Connector Type: Receptacle
• Number of Positions: 39
• Pitch: 0.3mm
• Mounting Type: Surface Mount Technology (SMT)
• Actuator Type: Back-flip
• Contact Orientation: Dual-sided (top and bottom)
• Housing Material: Liquid Crystal Polymer (LCP), gray color
• Contact Material: Phosphor Bronze
• Plating: Gold over Nickel
