FDPC8012S – High-Efficiency PowerTrench® Synchronous MOSFET

Description

Technical Specifications:

• Maximum Drain-Source Voltage: 25V

• Maximum Continuous Drain Current:

  • Q1: 13A
  • Q2: 26A

• Power Dissipation:

  • Q1: 800mW
  • Q2: 900mW

• Operating Junction Temperature: -55°C to +150°C

Product Features:

• Asymmetric Dual N-Channel Configuration:
  Incorporates two N-Channel MOSFETs with differing specifications to enhance efficiency in synchronous buck converters.

• Low On-Resistance:
  Minimizes conduction losses, improving overall system efficiency.

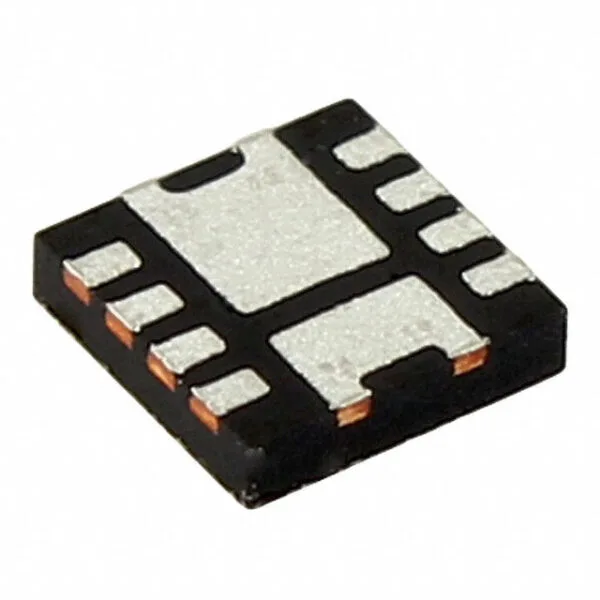

• Compact PowerClip-33 Package:
  Reduces board space requirements and enhances thermal performance.

• Integrated Schottky Diode:
  Features an embedded Schottky diode for reduced reverse recovery losses, contributing to higher efficiency.
