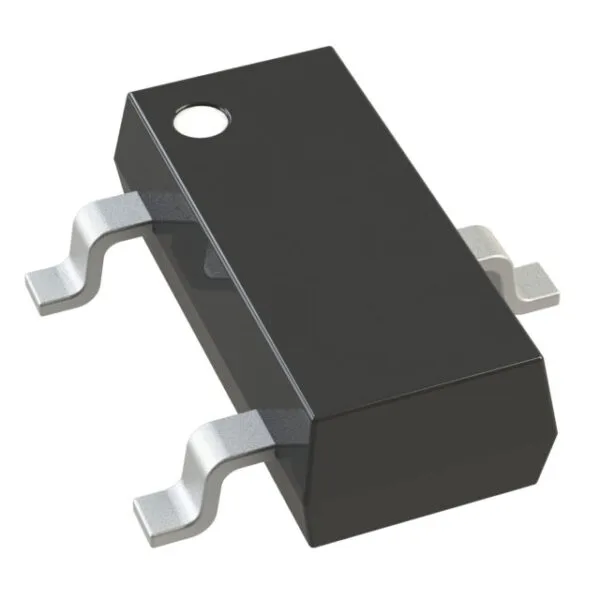

DMP2035U-7 – P-Channel MOSFET, -30V, -3.5A

Description

Technical Specifications:

• Transistor Type: P-Channel MOSFET
• Drain-Source Voltage (Vds): -30V
• Continuous Drain Current (Id): -3.5A
• Gate Threshold Voltage (Vgs): -1.2V to -3.0V
• On-Resistance (RDS(on)): 0.055Ω @ Vgs = -10V
• Power Dissipation (Pd): 1.25W
• Package Type: SOT-23
• Operating Temperature Range: -55°C to +150°C
• Applications: Load switching, DC-DC converters, battery management, power supplies, and motor drivers.

Product Features:

• P-Channel MOSFET: Simplifies high-side switching applications.
• Low On-Resistance (RDS(on)): Ensures efficient power handling and reduced heat dissipation.
• High Voltage Rating: Supports up to -30V drain-source voltage (Vds).
• Maximum Continuous Drain Current: -3.5A for high-current applications.
• Fast Switching Speed: Optimized for quick response times in power circuits.
• Low Gate Threshold Voltage: Enables operation with low drive voltage.
• Compact Package: SOT-23 package for space-saving PCB layouts.
