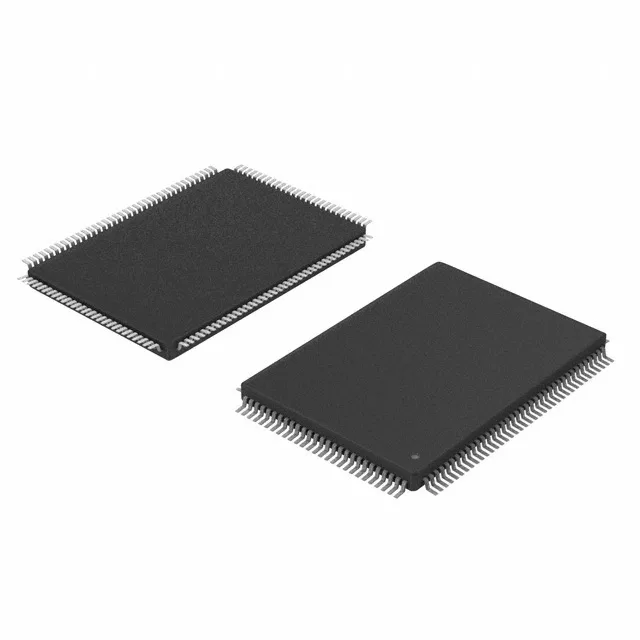

CY7C68013A-128AXC – USB 2.0 High-Speed Microcontroller

Description

Technical Specifications:

• USB Standard: USB 2.0 High-Speed (480 Mbps)
• Microcontroller Core: 8051-Compatible (16 KB RAM)
• FIFO Memory: Configurable for high-speed data buffering
• GPIO Pins: Multiple general-purpose I/O for flexible interfacing
• Operating Voltage: 3.3V with 5V-tolerant I/O
• Package Type: 128-Pin TQFP (Thin Quad Flat Package)
• Operating Temperature: 0°C to +70°C
• Compliance: RoHS Compliant

Product Features:

• USB 2.0 High-Speed Support: Achieves data rates of up to 480 Mbps for fast and efficient communication.
• 8051-Compatible Microcontroller Core: Supports firmware customization for USB device control and communication.
• Integrated USB Transceiver: Reduces the need for external components, simplifying circuit design.
• Programmable I/O Pins: Allows customization and interfacing with various external devices.
• Low-Power Operation: Optimized for minimal power consumption in portable and embedded applications.
• Flexible FIFO Configuration: Enables efficient data buffering and transfer in high-speed applications.
• 128-Pin TQFP Package: Provides ample connectivity options while maintaining a compact footprint.
• RoHS Compliant: Lead-free and environmentally friendly.
• Applications: USB peripherals, data acquisition systems, embedded systems, industrial automation, and communication devices.
