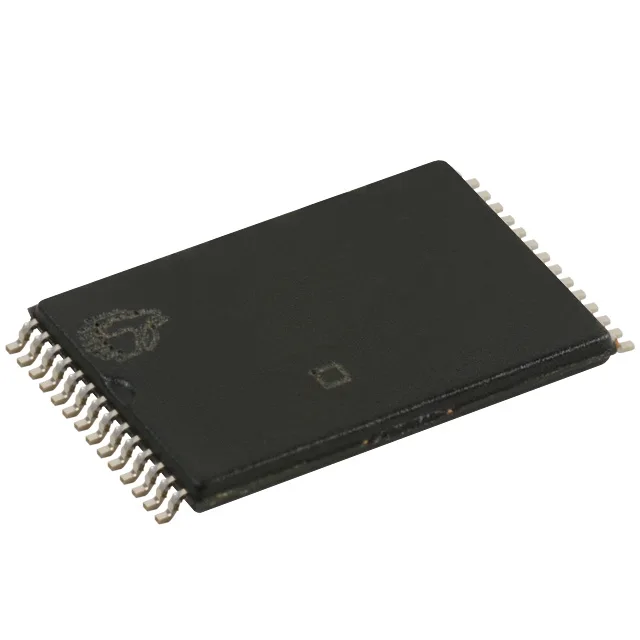

CY62256VLL-70ZXCT – 256-Kbit (32K x 8) Low Power Static RAM (SRAM)

Description

Technical Specifications:

• Memory Type: Static RAM (SRAM)
• Memory Size: 256-Kbit (32K x 8)
• Access Time: 70 ns
• Operating Voltage: 2.7V – 3.6V
• Standby Current: 1 µA (typical)
• Interface: Parallel
• Package Type: 28-Pin TSOP-1
• Operating Temperature Range: -40°C to +85°C
• Compliance: RoHS, Lead-Free

Product Features:

• 256-Kbit (32K x 8) memory organization for efficient data storage
• 70 ns access time for fast data retrieval and high-speed performance
• Low-power design with typical standby current of 1 µA for battery-operated applications
• Single 2.7V to 3.6V power supply for wide voltage compatibility
• CMOS technology ensuring high stability and low noise
• TTL-compatible inputs and outputs for seamless interface with other logic devices
• Automatic power-down feature to minimize power consumption in idle states
• Compact 28-pin TSOP-1 package for space-constrained designs
• Wide temperature range (-40°C to +85°C) suitable for industrial environments
• RoHS compliant and lead-free
