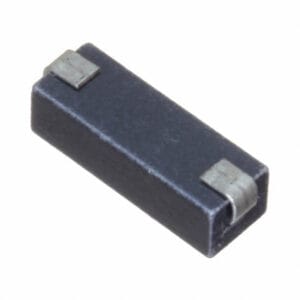

B39431-B3743-H110 – 433.92MHz SAW Filter

Description

Technical Specifications:

• Center Frequency (f₀): 433.92MHz
• Insertion Loss: 1.9dB
• 3dB Bandwidth: 340kHz
• Impedance: 50 Ohms
• Package Dimensions: 3.0mm x 3.0mm x 1.0mm
• Operating Temperature Range: -40°C to +125°C

Product Features:

• Center Frequency: 433.92MHz
• Low Insertion Loss: 1.9dB, minimizing signal attenuation
• Narrow Bandwidth: 340kHz, providing high selectivity
• Impedance: 50 Ohms, ensuring compatibility with standard RF circuits
• Compact SMD Package: 3.0mm x 3.0mm x 1.0mm, suitable for space-constrained designs
• Wide Operating Temperature Range: -40°C to +125°C, suitable for various environmental conditions
