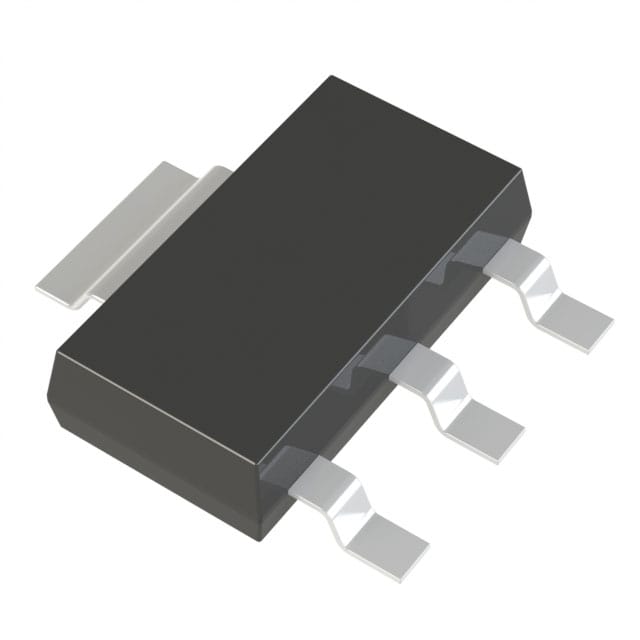

AZ1117H-3.3TRE1 – 3.3V Low Dropout Voltage Regulator

Description

Technical Specifications:

• Output Voltage: 3.3V
• Maximum Output Current: 1A
• Dropout Voltage: ~1.1V @ 1A load
• Quiescent Current: Low power consumption
• Protection Features: Thermal shutdown and current limit
• Operating Temperature Range: -40°C to +125°C
• Package Type: SOT-223 (Small Outline Transistor)
• Applications: Embedded systems, microcontroller power supply, industrial control, consumer electronics, and IoT devices.

Product Features:

• Fixed 3.3V Output: Provides a stable voltage supply for sensitive components.
• Low Dropout Voltage: Ensures efficient power conversion with minimal heat dissipation.
• High Output Current: Supports up to 1A of continuous current.
• Thermal Protection: Built-in over-temperature and overcurrent protection.
• Low Quiescent Current: Optimized for power-sensitive applications.
• High Power Supply Rejection Ratio (PSRR): Reduces noise from power sources.
• Compact Package: Available in SOT-223 for space-saving PCB design.
