Description

Technical Specifications:

• Diode Type: Dual Rectifier Diode
• Maximum Reverse Voltage (VRRM): 600V
• Forward Current (IF): 60A
• Forward Voltage (VF): 1.6V (typical)
• Reverse Recovery Time (trr): 35ns (typical)

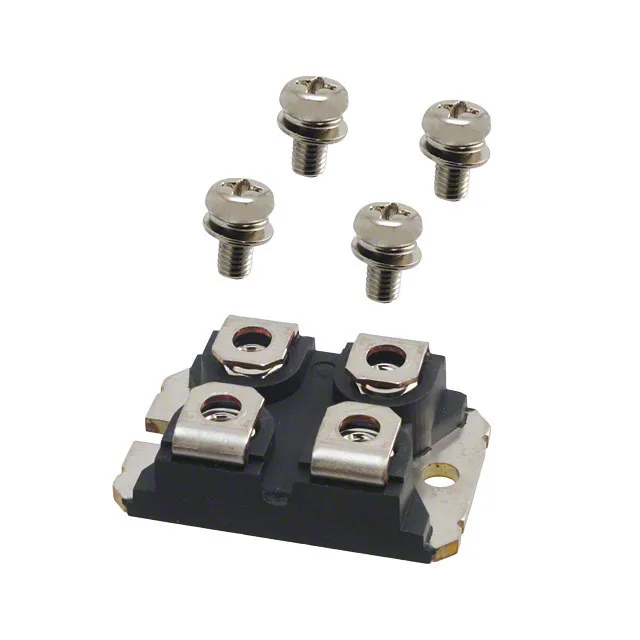

• Package Type: ISOTOP
• Operating Temperature Range: -40°C to +150°C
• Compliance: RoHS Compliant

Product Features:

• Dual Diode Configuration: Combines two diodes in a single module for space-efficient designs.
• High Voltage Rating: Handles up to 600V for robust power applications.
• High Current Capability: Supports up to 60A forward current per diode.
• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• Isolated Baseplate: Ensures electrical isolation and simplifies thermal management.
• Compact and Durable Package: Suitable for demanding industrial environments.
• RoHS Compliant: Environmentally friendly and free of hazardous substances.
