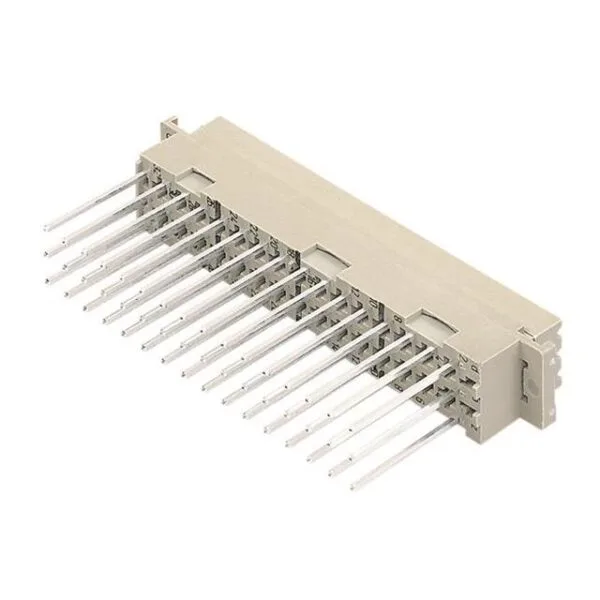

9062486821 – 48-Position DIN 41612 Connector Receptacle

Description

Technical Specifications:

• Contact Termination: Wire wrap
• Insulation Material: Glass-filled thermoplastic
• Flammability Rating: UL94 V-0
• Operating Temperature Range: Information not specified

Product Features:

• Connector Type: Receptacle with female sockets
• Number of Positions: 48 (Power)
• Mounting Type: Panel mount with through-hole termination
• Pitch: 0.200" (5.08mm)
• Number of Rows: 3
• Style: F
• Level, Class: 2
