74FCT244ATSOG – Octal Buffer/Line Driver, 3-State

Technical Specifications:

• Type: Octal Buffer/Line Driver with 3-State Outputs
• Supply Voltage: 4.5V to 5.5V
• Output Current: -15mA (IOH), 64mA (IOL)
• Propagation Delay: 4.1ns (typical) at 5V, 50pF load
• Input Capacitance: 6pF (typical)
• Power Dissipation: 0.5mA (quiescent, typical)
• Operating Temperature: -40°C to +85°C

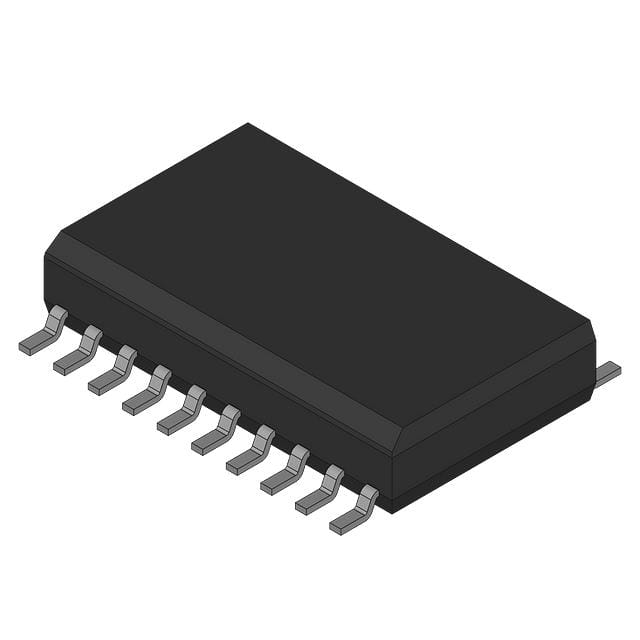

• Package Type: SOIC-20, 20-pin, surface-mount

Product Features:

• Octal Buffer Design: Eight non-inverting buffers with 3-state outputs for robust bus interfacing.
• High-Speed Operation: Built with advanced CMOS technology for reduced power and speeds comparable to FAST family ICs.
• High Output Drive: Delivers -15mA source and 64mA sink current for driving capacitive loads.
• 3-State Outputs: Allows high-impedance state for bus sharing and isolation when disabled.
• Wide Voltage Range: Operates from 4.5V to 5.5V, compatible with TTL levels.
• Low Input Current: Typical input current of 1µA reduces power consumption.
• Compact Package: Housed in a 20-pin SOIC (Small Outline IC) for surface-mount applications.
• ESD Protection: Exceeds 2000V (HBM) for enhanced reliability.
